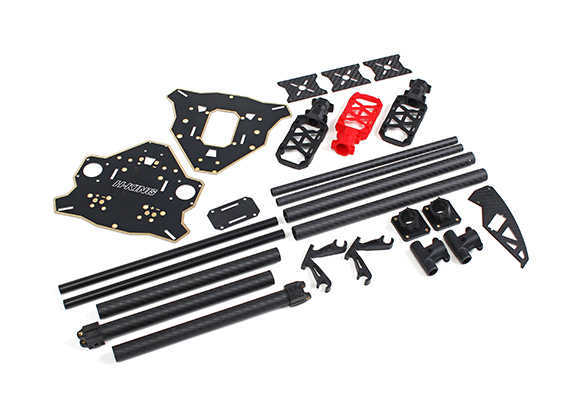

Titus-600 Carbon Fiber Tri-copter Frame

Description

The Titus is a high quality 600 size multi-rotor frame like no other, with its genuine high quality carbon fiber and aluminum construction, the integrated tail servo mount is CNC cut from high grade aluminum and is dual ball raced which provides super smooth operation and yaw response.

The Titus-600 is packed with features which include an adjustable rear arm position, Integrated PCB distribution board, folding arms for easy transportation and storage, large T-shaped undercarriage for camera clearance / protection and built-in camera gimbal suspension rails.

The arms and main landing gear struts of the Titus-600 are manufactured from high quality 16mm carbon fiber tube, which provide excellent strength and durability, while the layout of the arms and size of the upper and lower main boards means there is plenty of space available for mounting electronics and your preferred flight controller.

Features:
• Super strong 16mm carbon fiber tubes provide excellent durability
• Integrated PCB distribution board
• Adjustable rear arm length
• Folding arms for easy transportation and storage
• Dual ball raced yaw servo system for super smooth operation and response
• Large T-shape landing provides protection for FPV camera systems
• Frame provides ample mounting space for flight controllers and electronics
• Built-in camera gimbal suspension rails
• Supports Y3 tri-copter mode
• Supports KK, MWC, APM flight controllers

Specifications:
Diameter: 600mm (adjustable)
Weight: 450g
Height: 248mm
Assembled Landing Gear Width: 305mm

Requires:
10-15 inch props
3 x Motors (recommended 2212, 2216, 3108, 3110, 3508, 4108)
3 x 20~40 amp ESC's
Tri-copter capable flight controller
4 channel transmitter & receiver
3-4S LiPo battery
