Description
Introducing the TS3t 3ch Surface Radio System, the first radio set made by TrackStar!
What does TS3t stand for?
TS means TrackStar;
3 means 3 Channels and;
t means telemetry!
The TrackStar TS3t radio system comes with 3 different sensors. The first one is a 2S voltage sensor, it’s used to detect the usage of the Lipoly battery on the car. The second one is a temperature sensor, it can detect the temperature of the motor/ESC. The last one is a speed sensor, it can show the RPM of the wheels. All 3 signals will be managed by a telemetry module connected to the receiver and all the data will show in real-time on the LCD montior of the transmitter. The system will also record the maximum temperature that the motor/ESC has reached, so the user can use the data for later analysis.
Features:
• 3-Channel 2.4GHz FHSS Digital Radio with telemetry
• Includes 3-channel receiver
• Includes 3 different telemetry sensors and telemetry module
• Data Logging for Temperature

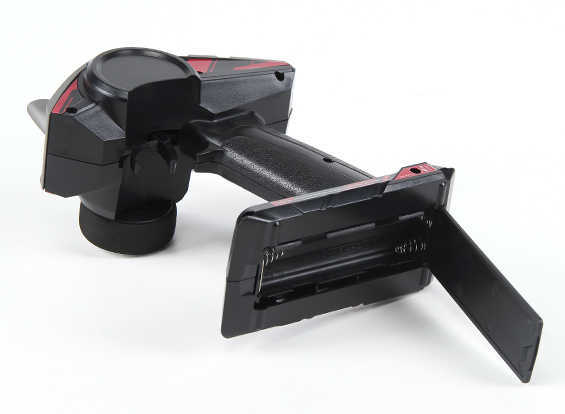

• 4 cell Battery Holder for lighter Weight
• Accepts Optional 5 cell Ni-MH Batteries or 2S Li-Po or 2S Li-Fe Battery Packs
• 6 Model Memory
• Exponential, ST and TH curve Adjustments
• Anti-Lock Braking
• Throttle Hold
• Channel 2 and 3 mixing
• Programmable Fail Safe
• Digital Trims
• Digital Battery Voltage Monitor
Transmitter Specs:
Nominal Input Voltage: 4.4~8.6V
Low Voltage Warning: YES (less than 4.4V)
Dry Weight: 280g
Dimensions: 100x140x200mm
Frequency: 2.4GHz FHSS
Charger port: YES
Receiver Specs:
Nominal Input Voltage: 4.4~8.6V
Weight: 8g
Dimensions: 13x20x30mm
Frequency: 2.4GHz FHSS
Telemetry Concentrator Specs:
Dimension: 13x20x30mm
Voltage measuring range: 1~30V
Temperature measuring range: 0~150°C
Speed measuring range: 480~50000rpm
Included:

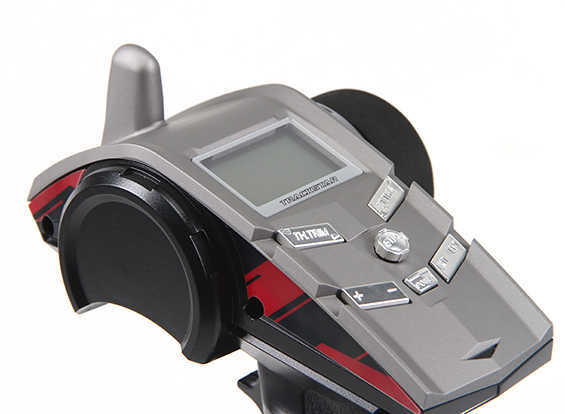

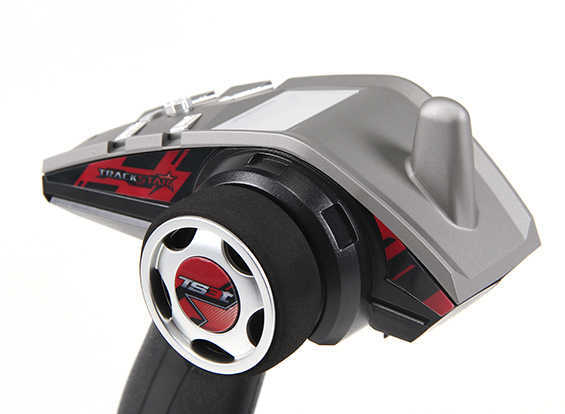

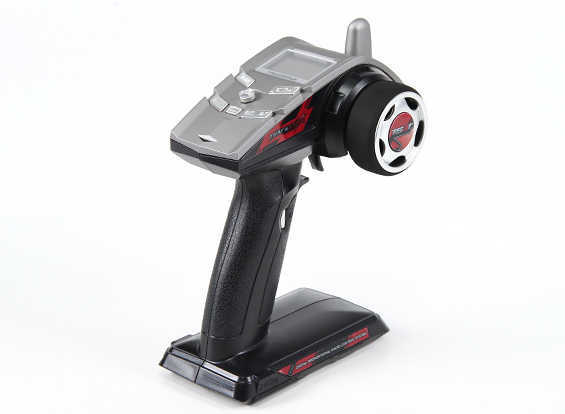

TS3t 2.4Ghz FHSS 3-Channel Digital Transmitter
TS3t 2.4Ghz 3-Channel Receiver
TS3t telemetry module
Connecting wire
Speed Sensor x 1
Voltage Sensor x 1
Temperature Sensor x 1
User’s Guide
Lipo Battery For The Radio for longer use
Required:
Lipo Charger for the battery
